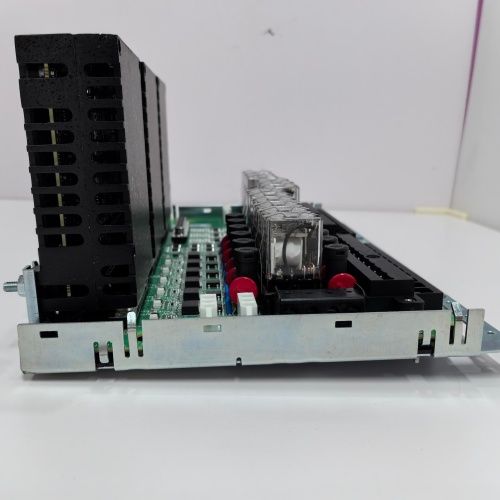

Description   Product Introduction The GE IS200DSCBH1A is a Mark VIe series configurable signal conditioner/converter module that provides 8 channels of signal conversion for a wide range of field sensor types. This I/O pack interfaces with thermocouples, RTDs, 4-20 mA transmitters, 0-10 V sensors, and other analog field devices. It converts these signals to a standardized digital format for the Mark VIe control system, eliminating the need for multiple dedicated modules. The H1A revision provides 8 configurable channels that can be independently set for voltage, current, thermocouple, or RTD inputs. This makes the DSCBH1A an extremely flexible module for plants with mixed sensor types. In our field experience, this module is used extensively in retrofit applications where multiple sensor types need to be integrated into a Mark VIe system. For engineers looking to reduce spare part inventory, the DSCBH1A’s versatility allows a single module type to cover multiple signal conditioning requirements.   Key Technical Specifications Parameter Value Model Number IS200DSCBH1A Series Mark VIe IS200 Hardware Revision H1A Number of Channels 8 configurable signal conditioning channels Input Types (Configurable) 0-10 V, ±10 V, 0-20 mA, 4-20 mA, thermocouple (J, K, T, E, R, S), RTD (Pt100, Ni120) Resolution 14-bit ADC (0.006% of span) Accuracy ±0.1% of span at 25°C (varies by input type) Input Impedance >1 MΩ (voltage), 250 Ω (current) Isolation 500 V DC channel-to-channel, 500 V DC channel-to-backplane CJC Accuracy ±0.5°C for thermocouple inputs (with internal compensation) Diagnostics Open-circuit detection, short-circuit detection, out-of-range detection Operating Temperature −30°C to 65°C (ambient, with 0.5 m/s airflow) Power Supply 24 V DC from backplane, 250 mA typical Bus Interface VME-based high-speed parallel bus Firmware Verify compatibility with ToolboxST/ToolboxEX versions ≥6.0 Termination Board Compatibility TS200DSC1, TS200DSC2 LED Indicators Module power, configuration status, fault   Key Selling Points & Differentiators 8-channel configurable signal conditioning – supports voltage, current, thermocouple, and RTD inputs in a single module. Reduces the number of spare part types needed in inventory. Channel-by-channel configuration – each of the 8 channels can be independently configured. Mix voltage, current, and temperature inputs on the same module. 14-bit resolution with ±0.1% accuracy – provides precise measurement for all input types. Thermocouple and RTD measurement meets typical turbine control requirements. Rigorous 48-hour burn-in – each unit runs with all 8 channels configured for different input types while monitoring for measurement errors and stability. 3-year warranty on hardware – backed by our in-house repair depot with average 48-hour turnaround. Dedicated DSCB swap-pool ensures rapid replacement.   Frequently Asked Questions (FAQ) Can I hot-swap this IS200DSCBH1A into a running Mark VIe system? We strongly advise against it. The DSCBH1A has shown unpredictable behavior when inserted into a powered backplane due to the configuration initialization process. Schedule a controlled outage, de-energize the rack, and swap it during planned maintenance. What input types does this module support? The DSCBH1A supports: 0-10 V, ±10 V, 0-20 mA, 4-20 mA, thermocouple types J, K, T, E, R, and S, and RTD types Pt100 and Ni120. Each channel is individually configurable through ToolboxST. Is there cold junction compensation for thermocouples? Yes. The module includes internal cold junction compensation (CJC) with ±0.5°C accuracy. The CJC temperature is measured by an onboard sensor and applied to each thermocouple channel. For highest accuracy, ensure the module is not subject to drafts or rapid temperature changes. What is the resolution for thermocouple and RTD measurements? The ADC provides 14-bit resolution, which translates to approximately 0.1°C resolution for thermocouples and 0.05°C for Pt100 RTDs. The actual accuracy is limited by the sensor and the module’s accuracy specification of ±0.1% of span. How do I configure the channels? Channel configuration is done in ToolboxST. Each channel can be set to a specific input type and range. The configuration is stored in the module’s EEPROM. After replacement, you must reconfigure the new module using ToolboxST. What is the maximum cable length for thermocouple inputs? For thermocouple inputs, we recommend using shielded, twisted-pair extension wire with a maximum length of 100 meters. Beyond that, noise pickup and resistance effects degrade accuracy. For RTD inputs, a 3-wire or 4-wire configuration is recommended for longer runs to compensate for lead resistance. What happens if a thermocouple wire breaks? The module includes open-circuit detection. If a thermocouple or RTD input is open, the module will report a diagnostic flag and the controller can take appropriate action. No damage to the module occurs. How do I verify this is a genuine GE module? We source exclusively from GE-authorized liquidations. Our verification includes OEM packaging inspection, serial number cross-check against GE records, and PCB inspection for GE-specific markings. We test all 8 channels with a calibrated signal source. We provide PCB photographs upon request. Will I lose my configuration data when I replace the module? Yes. Configuration is stored in the module’s EEPROM, not in the controller. You will need to reconfigure the new module in ToolboxST after installation. Take screenshots of your current configuration before replacement. What is the expected lifespan of this unit? We see MTBF around 120,000 hours for the DSCBH1A. The module has no wearable components. We have seen these units exceed 15 years in field service with proper maintenance. What happens if the module fails within the warranty period? We cross-ship a tested replacement from our dedicated DSCB swap-pool the same business day. You return the failed unit within 15 days. Our repair depot has an average 48-hour turnaround. No restocking fees. You receive a DSCBH1A replacement. Which termination board should I use with this module? The IS200DSCBH1A mates with GE’s TS200DSC1 or TS200DSC2 termination boards. Check ribbon cable orientation; pin 1 has a red stripe. We include a wiring diagram PDF with every order. TRICONEX-4508 PLC TRICONEX-4400 PLC TRICONEX-8306A PLCI/O Brand new✔ In stock ✔ Fast shipping✔ Email: [email protected] Phone： 86 15343416922 Wechat： 86 15343416922 Advantageous products we supply PLC : Allen Bradley , Siemens MOORE, GE FANUC , Schneider DCS : ABB ,Honeywell, Invensys Triconex , Foxboro , Ovation,YOKOGAWA, Woodword, HIMA TSI : Triconex , HIMA , Bently Nevada , ICS Triplex Complete service we offer Payment: T/T Delivery: 1-2 days Shipment: DHL UPS FedEx, etc After-sales service: Yes, 24/7 hours
