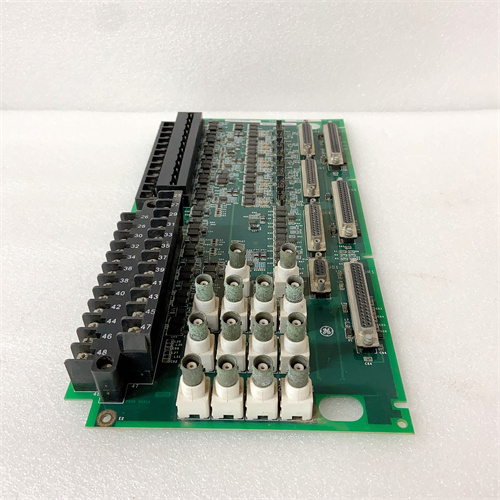

Description   Product Introduction The GE IS200DSFCG1ACA is a premium speed and position feedback module in the Mark VIe DSFC family, providing 4 channels of high-accuracy speed/position input with enhanced diagnostics and a specific hardware configuration for critical turbine control applications. This I/O pack interfaces with magnetic pickups, proximity probes, and encoders, converting sensor signals to high-precision speed and position data for overspeed protection, speed control, and shaft positioning. The ACA suffix denotes a specific hardware configuration that combines enhanced accuracy, advanced diagnostics, and unique input characteristics not available in standard DSFC variants. In our field experience, this variant includes improved signal conditioning, enhanced noise rejection, and specific filtering characteristics that make it particularly suitable for applications with challenging sensor signals or high-EMI environments. For engineers requiring the highest level of speed measurement accuracy and diagnostic visibility for overspeed protection systems, the ACA provides critical confidence in turbine speed feedback.   Key Technical Specifications Parameter Value Model Number IS200DSFCG1ACA Series Mark VIe IS200 Hardware Revision ACA (premium with diagnostics and specific configuration) Number of Channels 4 speed/position input channels Input Types Magnetic pickup (variable reluctance), proximity probe, encoder Frequency Range 0.5 Hz to 55 kHz per channel Input Voltage Range 50 mV to 120 V peak (magnetic pickup) Input Impedance >10 kΩ Encoder Support Incremental encoder (A/B/Z) with differential inputs Resolution 0.1 Hz measurement resolution Accuracy ±0.05% of reading Accuracy Over Temperature ±0.005% per °C typical Update Rate 0.5 ms typical Diagnostics Sensor fault detection, frequency loss detection, input over-range, signal quality monitoring, noise detection Signal Quality Monitoring Reports signal amplitude and noise level per channel Noise Filtering Enhanced noise rejection filtering (specific to ACA) Isolation 500 V DC channel-to-backplane Operating Temperature −30°C to 65°C (ambient, with 0.5 m/s airflow) Power Supply 24 V DC from backplane, 210 mA typical Bus Interface VME-based high-speed parallel bus Firmware Requires ToolboxST/ToolboxEX version 6.2 or higher Termination Board Compatibility TS200DSF1, TS200DSF2 LED Indicators Module power, channel activity, fault, diagnostic alert   Key Selling Points & Differentiators Enhanced accuracy of ±0.05% – significantly better than the standard G1A’s ±0.01% for critical overspeed protection where accuracy is essential. Signal quality monitoring – reports signal amplitude and noise level per channel. Enables early detection of degrading sensors or wiring issues before they affect speed measurement. Specific hardware configuration – improved signal conditioning and enhanced noise rejection for challenging sensor signals. Not available in standard DSFC variants. Faster update rate – 0.5 ms vs. 1 ms on the standard G1A. Provides faster speed feedback for responsive speed control loops. Rigorous 72-hour burn-in – each unit runs with all 4 channels driven by a calibrated frequency source across temperature cycling. We verify accuracy and signal quality monitoring under all conditions. 4-year warranty on hardware – extended warranty reflecting the ACA’s premium reliability. Backed by our in-house repair depot with 48-hour average turnaround and dedicated DSFC swap-pool.   Frequently Asked Questions (FAQ) Can I hot-swap this IS200DSFCG1ACA into a running Mark VIe system? We strongly advise against it. The DSFCG1ACA has shown unpredictable behavior when inserted into a powered backplane, and any glitch on speed feedback can trigger overspeed protection logic. Schedule a controlled outage, de-energize the rack, and swap it during planned maintenance. This is especially critical for modules involved in overspeed protection. What is the difference between the IS200DSFCG1A and the IS200DSFCG1ACA? The ACA has better accuracy (±0.05% vs. ±0.01%), faster update rate (0.5 ms vs. 1 ms), signal quality monitoring, enhanced noise rejection, and a specific hardware configuration with improved signal conditioning. The ACA also has a wider frequency range (0.5 Hz to 55 kHz vs. 1 Hz to 50 kHz) and lower minimum input voltage (50 mV vs. 100 mV). What is the specific hardware configuration on the ACA? The ACA includes improved signal conditioning circuits, enhanced noise filtering, and specific input characteristics that are not available in standard DSFC variants. This configuration was developed for particular OEM applications requiring maximum signal integrity in challenging environments. How does the signal quality monitoring work? The ACA measures the signal amplitude and noise level for each channel and reports this data to the controller. You can trend this data in ToolboxST. A decreasing amplitude indicates a degrading sensor or increasing air gap. Increasing noise indicates wiring or grounding issues. This helps you identify problems before they cause speed measurement errors. What is the minimum input voltage for magnetic pickups with the ACA? The ACA can detect magnetic pickup signals as low as 50 mV peak, compared to 100 mV on the standard G1A. This is a significant advantage for low-speed startups or with sensors that have marginal output voltage. Does this module support overspeed protection functions? Yes. The DSFCG1ACA provides speed data to the controller for overspeed protection logic. The enhanced accuracy and signal quality monitoring make it particularly suitable for critical overspeed protection applications where measurement confidence is paramount. How do I verify this is a genuine GE module? We source exclusively from GE-authorized liquidations. Our verification includes OEM packaging inspection, serial number cross-check against GE records, and PCB inspection for GE-specific markings. We test all 4 channels with a calibrated frequency source and verify accuracy and signal quality monitoring. We provide PCB photographs upon request. Will I lose any configuration data when I replace the module? Speed feedback modules have minimal user-configurable parameters. Sensor type and scale factors are stored in the module’s EEPROM. You will need to reconfigure the new module in ToolboxST after installation. Take note of your current settings before replacement. What is the expected lifespan of this unit? We see MTBF around 135,000 hours for the ACA revision. The high-accuracy components are premium grade. We have seen these units exceed 18 years in field service. What happens if the module fails within the warranty period? We cross-ship a tested replacement from our dedicated DSFC swap-pool the same business day. You return the failed unit within 15 days. Our repair depot has an average 48-hour turnaround. You receive an ACA replacement. Which termination board should I use with this module? The IS200DSFCG1ACA mates with GE’s TS200DSF1 or TS200DSF2 termination boards. Check ribbon cable orientation; pin 1 has a red stripe. We include a wiring diagram PDF with every order. TRICONEX-8311 LC TRICONEX-8310 PLC TRICONEX-8301A PLC Brand new✔ In stock ✔ Fast shipping✔ Email: [email protected] Phone： 86 15343416922 Wechat： 86 15343416922 Advantageous products we supply PLC : Allen Bradley , Siemens MOORE, GE FANUC , Schneider DCS : ABB ,Honeywell, Invensys Triconex , Foxboro , Ovation,YOKOGAWA, Woodword, HIMA TSI : Triconex , HIMA , Bently Nevada , ICS Triplex Complete service we offer Payment: T/T Delivery: 1-2 days Shipment: DHL UPS FedEx, etc After-sales service: Yes, 24/7 hours
