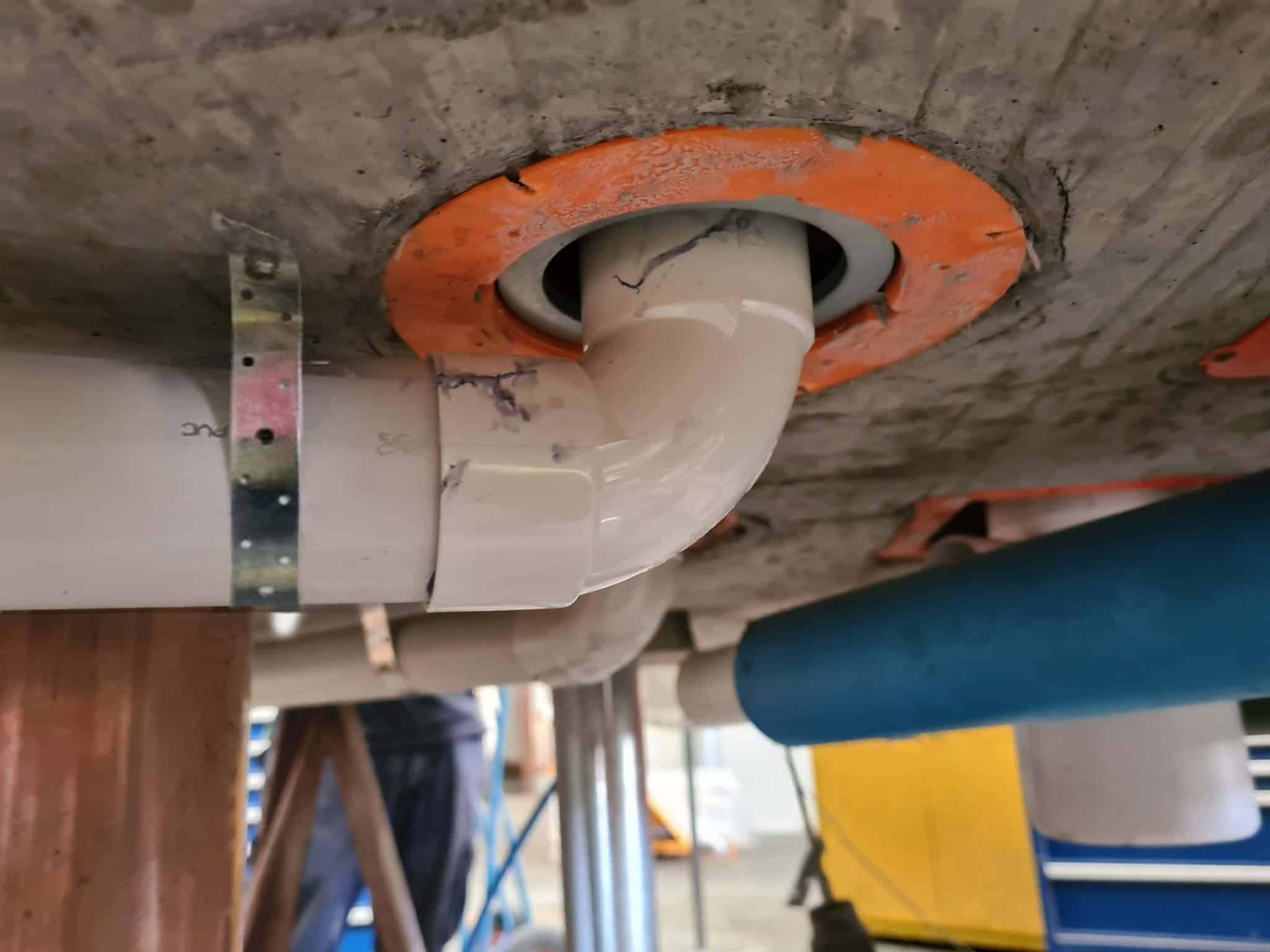

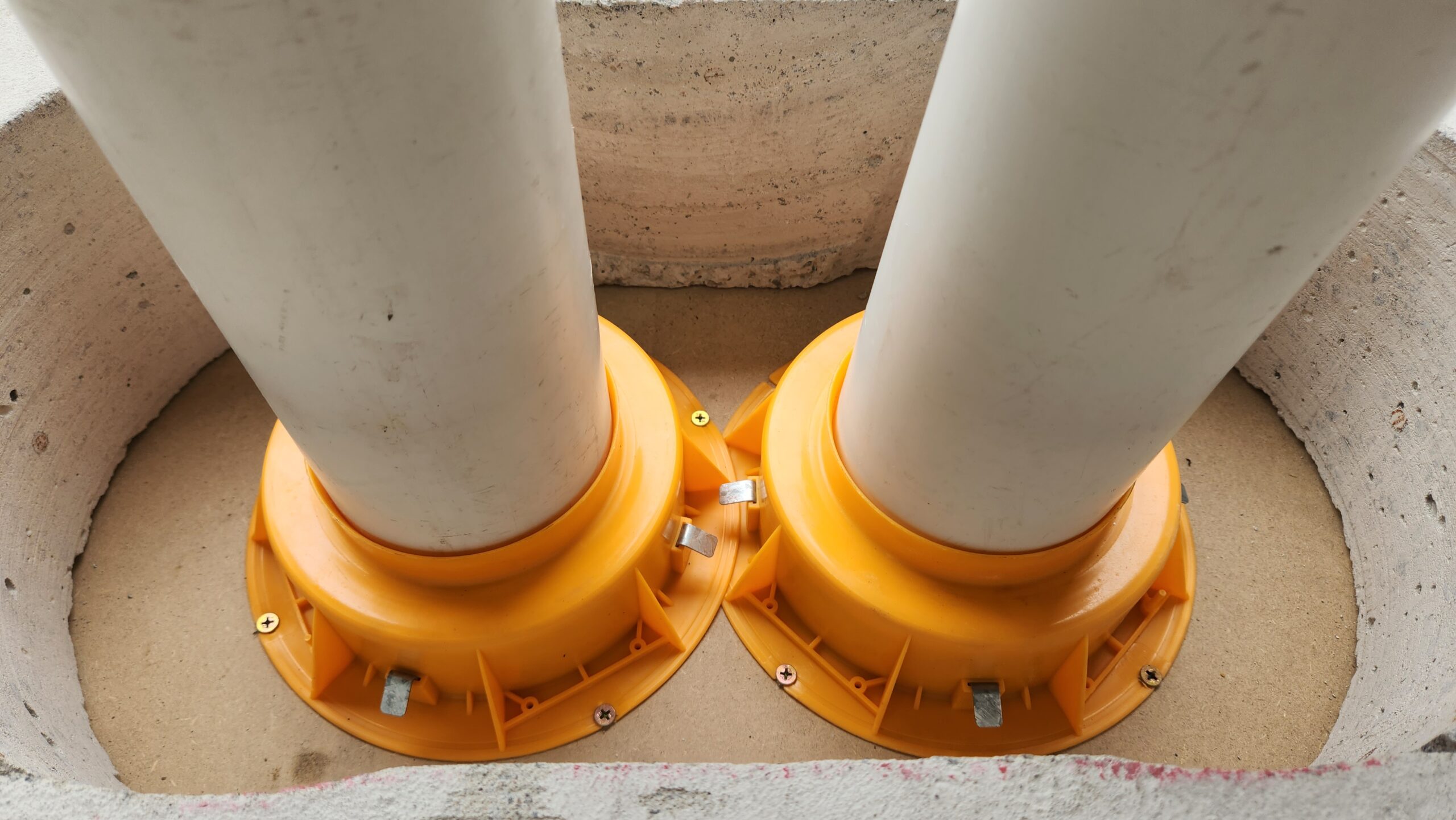

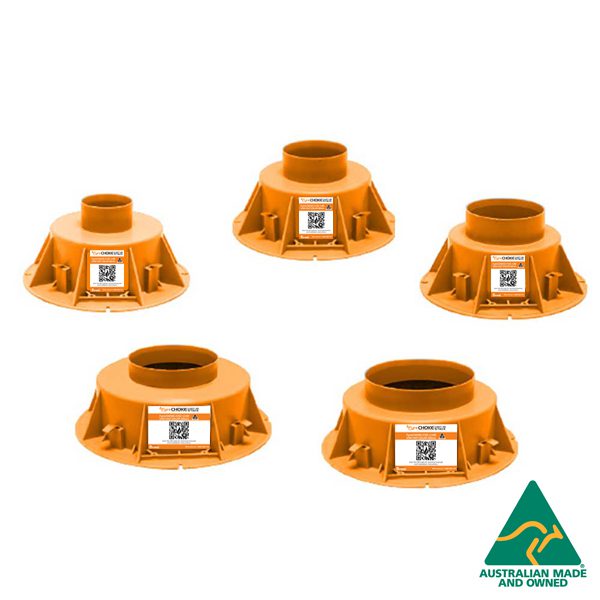

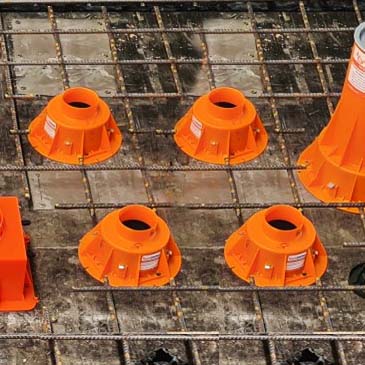

Description Trafalgar’s Australian Made FyreCOLLAR Cast-in range of fire collars provides a full range of solutions for use in both stack pipe and floor waste applications, with up to 4 hours across a huge range of common pipes types and sizes.  Specifically for stack and plumbing pipes, locally made, injection moulded and designed to be cast directly into concrete floor slabs for the provision of plastic pipe penetrations without the need to pre-install sections of pipework, decreasing the amount of time spent on site. Trafalgar cast-in fire collars are suitable for all thickness slabs. These low-profile collars are cast in place with a section of pipe installed before the concrete is poured, for pipework to be connected to once set. Stack Pipe Applications –  where the pipe runs continuously through the slab (drain, waste and vent, DWV). Key Features To suit pipes 40, 50, 65, 80 & 100mm Plastic Pipes: PVC, HDPE, PP-R, PP, RAUPIANO Insulated pair coil bundles Stack and floor waste testing covers a wide range of pipes with fire elbows, S-bends and 4-way risers. Polypropylene body material gives high moisture resistance and flexural strength The high-grade intumescent formulation for fire performance Rubber seal to stop water/debris Plastic cap included for protection during installation Flexible rubber membrane absorbs pipe movement and vibration Collars fire tested directly next to each other with flanges overlapping for tight spaces   Cast In Collar Low Top Sizes Available: 40mm 50mm 65mm 80mm 100mm For more about fire collars read this article  Learn More about the difference between STACK and FLOOR-WASTE Fire Collars   Test Reports and Documents: FyreCOLLAR Cast- In Revision Assessment Report FCO 3475   In Stock
