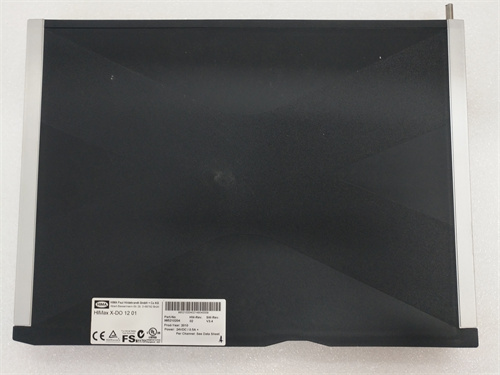

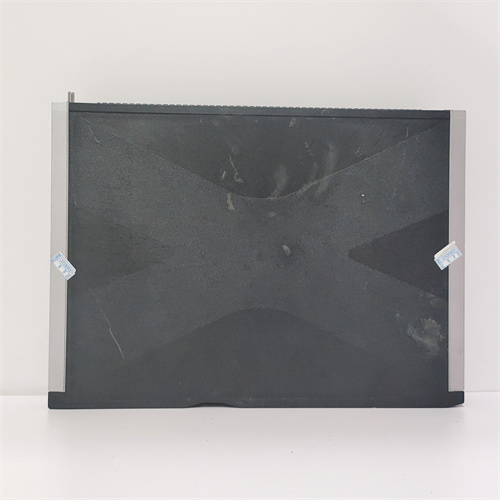

Description Product Description The HIMA X-DO1201 985210204 is a high-integrity digital output module from HIMA, a global leader in safety automation. Designed for use within HIMA’s highly fault-tolerant F (Flexible Plus) and F 35 (Flexible 35) safety controllers, this module executes critical commands from the safety logic solver to the final elements in the field. The HIMA X-DO1201 985210204 is engineered to meet the most stringent safety requirements, providing two independent, galvanically isolated output channels, each capable of safely de-energizing loads such as solenoid valves, motor contactors, or alarms in an emergency situation. Its primary function is to reliably translate a safety logic “trip” decision into a physical action, making it the last electronic component in the safety chain before the field device. The robust, diagnostics-rich design of the HIMA X-DO1201 ensures that even internal faults are detected and managed to maintain or drive the process to a safe state, which is why it is a trusted component in the most demanding SIL 3 applications worldwide. HIMA X-DO1201 985210204   Product Parameters Product Type: 2-Channel Digital Output Module (Sourcing/PNP) Compatible System: HIMA F and F 35 Series Safety Controllers. Number of Channels: 2 independent, galvanically isolated output channels. Output Type: Sourcing (PNP), solid-state. Output Voltage: 24 VDC nominal (17 – 30 VDC operating range). Output Current per Channel: 2 A continuous (with appropriate derating, e.g., at 60°C). Safety Standard: Certified for up to SIL 3 per IEC 61508 / IEC 61511. Diagnostics: Comprehensive channel-level diagnostics including short-circuit to ground detection, wire-break detection, and load current monitoring. Communication: Interfaces via the system’s internal HIMax or HiMatrix bus. MTTFd / PFH: High Mean Time To Failure Dangerous (MTTFd) and low Probability of Failure per Hour (PFH) values as per certified safety data. Safety Concept: Based on HIMA’s proprietary “Type B” diversified dual-channel architecture for maximum fault tolerance. HIMA X-DO1201 985210204   Advantages and Features The core advantage of the HIMA X-DO1201 985210204 is its certified safety architecture combined with advanced diagnostic capabilities. Each channel incorporates two independent, diversely designed microprocessors that continuously cross-check each other and monitor the output stage. This allows for the detection of over 99% of dangerous internal faults. Key features include configurable behavior on detection of a fault (e.g., can be forced to a safe 0V state) and integrated diagnostics that eliminate the need for external monitoring components. The module supports hot-swapping during operation, facilitating maintenance without a system shutdown. Its high current rating per channel allows it to drive most final elements directly, simplifying cabinet design and reducing the need for interposing relays.   Application Cases in Various Fields Oil & Gas (Fire & Gas / ESD): Directly activates deluge valves for fire suppression systems or vents/shuts down emergency shutdown (ESD) valves upon gas detection. Chemical Processing: Safely de-energizes control elements to initiate emergency quenching or dumping of reactor contents to prevent runaway reactions. Power Generation: Executes the final trip command to turbine fuel valves or boiler safety valves in a burner management system (BMS). Rail Transportation: Controls vital safety functions like emergency brake application in automated train control systems.   Comparison with Competing Products Compared to standard PLC digital output modules or even basic safety relays, the HIMA X-DO1201 985210204 is in a different class, offering certified SIL 3 capability with built-in, validated diagnostics. Competing safety system output modules from vendors like Triconex (Schneider Electric) or Allen-Bradley (Guard I/O) offer similar safety ratings. The HIMA X-DO1201 differentiates itself through its diversified dual-channel “Type B” design, which is often regarded as offering a higher level of diagnostic coverage and hardware fault tolerance than simpler 1oo1D or 1oo2 architectures. Unlike generic modules, it is not programmable as a standalone device; its logic and diagnostics are fully configured and integrated within HIMA’s safety engineering environment (HIMax), ensuring a cohesive and validated safety system.   Selection Suggestions and Precautions Selection Suggestions: System Compatibility: Confirm compatibility with your specific HIMA F or F 35 chassis and controller firmware version. Load Verification: Ensure the connected load’s inrush and steady-state current are within the module’s specified derating curve for your ambient temperature. The 2A rating is for resistive loads; inductive loads require special consideration. Safety Integrity Level (SIL): Verify that the use of this module, within your overall safety loop design, meets the target SIL (e.g., SIL 2 or SIL 3) requirements as per your Safety Requirement Specification (SRS). Wiring Class: Use the correct wiring class (e.g., A or B as per IEC 61131-2) for the field connections to ensure the wire-break and short-circuit diagnostics function correctly. Precautions: Certified Usage: This module must be used within a HIMA safety controller system as intended. Do not attempt to use it as a standalone device. Inductive Load Protection: While the module has internal protection, using external flyback diodes or surge suppressors across inductive loads (solenoids, contactor coils) is a critical best practice to protect the output electronics from voltage spikes. Grounding and Isolation: Strictly adhere to the manufacturer’s guidelines for system grounding and isolation. The diagnostic functions rely on proper grounding of the field supply common. Configuration and Validation: Every parameter of the HIMA X-DO1201 985210204 (e.g., fault behavior, pulse test intervals) must be correctly configured in the safety application software. After any hardware change or software download, a full functional safety test of the loop is mandatory. Bypassing Prohibited: Never bypass or jumper the outputs for testing or operational convenience. All testing must be done through the controller’s forced I/O functions or by simulating field conditions. FISHER CL6774X1-A1 FISHER CL6776X1-A1 FISHER CL6781X1-A1 FISHER CL6781X1-A2 FISHER CL6781X1-A3 FISHER CL6784X1-A1 Email: [email protected] Phone: 86 15340683922 Sales:Wu Jiedong Our products are guaranteed for 1 year, with new and original production stopped and imported spare parts. All prices listed on the official website are subject to confirmation by contact: Wu Jiedong (manager). Our product: brand new original packaging Our warranty: All new or repaired parts have a 12 month warranty period beginning Our payment: 100% telegraphic transfer of inventory items before shipment, conditions can be proposed! If you have any downtime spare parts that you cannot find, please feel free to call or use email to contact me. If there are issues that the product cannot solve, please contact me. Product prices can be negotiated. Please do not consider contacting me!
