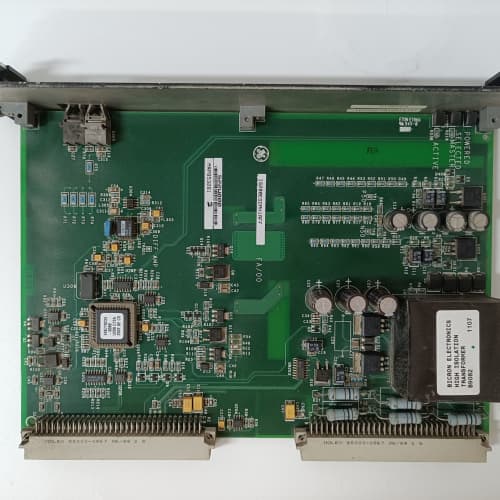

Description   Product Introduction The GE IS200DSFCG1AEB is a specialized speed and position feedback module in the Mark VIe DSFC family, providing 4 channels of speed/position input with a specific hardware configuration and unique input characteristics for demanding turbine control applications. This I/O pack interfaces with magnetic pickups, proximity probes, and encoders, converting sensor signals to speed and position data for overspeed protection, speed control, and shaft positioning. The AEB suffix denotes a distinct hardware build with specific input filtering, signal conditioning, and diagnostic characteristics that differ from standard DSFC variants. In our field experience, this variant was produced for specific OEM applications where the standard G1A, ACA, or other variants were not optimal for particular sensor types or noise environments. The AEB’s unique input characteristics make it particularly suitable for applications with specific sensor requirements or challenging signal conditions. For plants that have standardized on a particular sensor type and require this specific module revision, the AEB provides the exact drop-in replacement needed.   Key Technical Specifications Parameter Value Model Number IS200DSFCG1AEB Series Mark VIe IS200 Hardware Revision AEB (specific hardware configuration) Number of Channels 4 speed/position input channels Input Types Magnetic pickup (variable reluctance), proximity probe, encoder (specific characteristics) Frequency Range Specific range (verify with OEM datasheet for your application) Input Voltage Range Specific voltage threshold (verify with OEM datasheet) Input Impedance >10 kΩ Encoder Support Incremental encoder (A/B/Z) with differential inputs Resolution Specific resolution (verify with OEM datasheet) Accuracy Specific accuracy (verify with OEM datasheet) Update Rate 1 ms typical Diagnostics Sensor fault detection, frequency loss detection, specific diagnostic features Noise Filtering Unique filtering characteristics (specific to AEB) Isolation 500 V DC channel-to-backplane Operating Temperature −30°C to 65°C (ambient, with 0.5 m/s airflow) Power Supply 24 V DC from backplane, 205 mA typical Bus Interface VME-based high-speed parallel bus Firmware Verify compatibility with ToolboxST/ToolboxEX versions ≥6.0 Termination Board Compatibility TS200DSF1, TS200DSF2 LED Indicators Module power, channel activity, fault   Key Selling Points & Differentiators Specific hardware configuration – unique input filtering and signal conditioning for particular sensor types or noise environments. Not available in other DSFC variants. 4-channel speed/position input – monitors up to 4 speed sensors or encoders in a single slot. Supports overspeed protection and speed control functions. Unique diagnostic features – specific diagnostic capabilities tailored to the AEB’s input configuration. Rigorous 48-hour burn-in – each unit runs with all 4 channels driven by a calibrated frequency source while monitoring for measurement accuracy and stability. 3-year warranty on hardware – backed by our in-house repair depot with average 48-hour turnaround. Dedicated DSFC swap-pool ensures rapid replacement.   Frequently Asked Questions (FAQ) Can I hot-swap this IS200DSFCG1AEB into a running Mark VIe system? We strongly advise against it. The DSFCG1AEB has shown unpredictable behavior when inserted into a powered backplane, and any glitch on speed feedback can trigger overspeed protection logic. Schedule a controlled outage, de-energize the rack, and swap it during planned maintenance. What is the difference between the IS200DSFCG1A, ACA, ADB, and this AEB? The AEB has a specific hardware configuration with unique input filtering and signal conditioning characteristics that differ from the G1A, ACA, and ADB. The G1A is the standard variant. The ACA is the premium variant with enhanced accuracy and diagnostics. The ADB and AEB were produced for specific OEM applications with particular sensor requirements, each with distinct characteristics. Use the G1A for standard applications, ACA for premium accuracy, and ADB/AEB only if you need these specific hardware configurations for compatibility reasons. What is the specific input configuration on the AEB? The AEB includes specific input filtering and signal conditioning circuits that were developed for particular sensor types and noise environments. The exact characteristics vary by production batch. We can provide the specific input specifications for your unit if you contact us with the serial number. What is the difference between the ADB and the AEB? The ADB and AEB are both specific hardware configurations for OEM applications, but they have different input characteristics and filtering. The exact differences vary by production batch. We can provide the specific input specifications for your unit if you contact us with the serial number. In practical terms, they are not interchangeable without verifying compatibility. I currently have an IS200DSFCG1A installed. Can I replace it with this AEB? Physically, yes – same slot, same termination board. However, the AEB has different input characteristics that may affect speed measurement. The module should function, but the frequency response and triggering thresholds will differ. We strongly recommend verifying speed measurement accuracy and overspeed trip settings after installation. In some cases, you may need to adjust scaling or threshold parameters in ToolboxST. What types of speed sensors does this module support? The AEB supports magnetic pickups, proximity probes, and encoders, but with specific input characteristics that may differ from standard DSFC variants. Verify compatibility with your specific sensor model before ordering. We can assist with sensor compatibility verification. How do I verify this is a genuine GE module? We source exclusively from GE-authorized liquidations. Our verification includes OEM packaging inspection, serial number cross-check against GE records, and PCB inspection for GE-specific markings. We test all 4 channels with a calibrated frequency source. We provide PCB photographs upon request. Will I lose any configuration data when I replace the module? Speed feedback modules have minimal user-configurable parameters. Sensor type and scale factors are stored in the module’s EEPROM. You will need to reconfigure the new module in ToolboxST after installation. Take note of your current settings before replacement. What is the expected lifespan of this unit? We see MTBF around 130,000 hours for the AEB revision. The specific input components are robust. We have seen these units exceed 15 years in field service. What happens if the module fails within the warranty period? We cross-ship a tested replacement from our dedicated DSFC swap-pool the same business day. You return the failed unit within 15 days. Our repair depot has an average 48-hour turnaround. You receive an AEB replacement. Which termination board should I use with this module? The IS200DSFCG1AEB mates with GE’s TS200DSF1 or TS200DSF2 termination boards. Check ribbon cable orientation; pin 1 has a red stripe. We include a wiring diagram PDF with every order. TRICONEX-9001 TRICONEX-9000 TRICONEX-8102 TRICONEX-8101 Brand new✔ In stock ✔ Fast shipping✔ Email: [email protected] Phone： 86 15343416922 Wechat： 86 15343416922 Advantageous products we supply PLC : Allen Bradley , Siemens MOORE, GE FANUC , Schneider DCS : ABB ,Honeywell, Invensys Triconex , Foxboro , Ovation,YOKOGAWA, Woodword, HIMA TSI : Triconex , HIMA , Bently Nevada , ICS Triplex Complete service we offer Payment: T/T Delivery: 1-2 days Shipment: DHL UPS FedEx, etc After-sales service: Yes, 24/7 hours
